Infrared Heat Lamp for Printing Equipment

  • 400V 5400W Infrared Radiation Lamp for Sm102 Sw C C7.170.0301
  • 400V 5400W Infrared Radiation Lamp for Sm102 Sw C C7.170.0301
400V 5400W Infrared Radiation Lamp for Sm102 Sw C C7.170.0301 400V 5400W Infrared Radiation Lamp for Sm102 Sw C C7.170.0301

400V 5400W Infrared Radiation Lamp for Sm102 Sw C C7.170.0301

  • 400V 5400W Infrared Radiation Lamp for Sm102-Sw-C C7.170.0301/01
  • INQUIRY

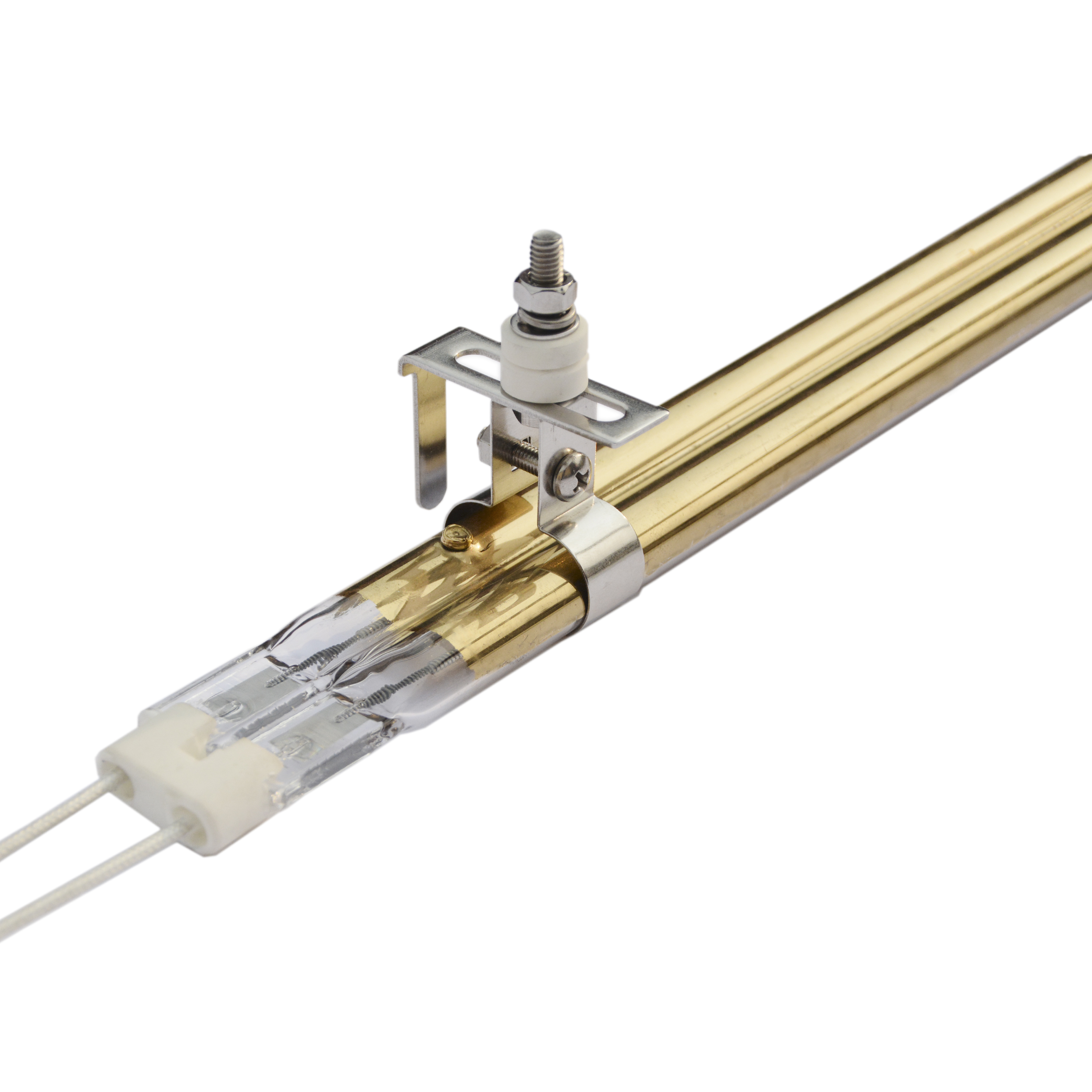

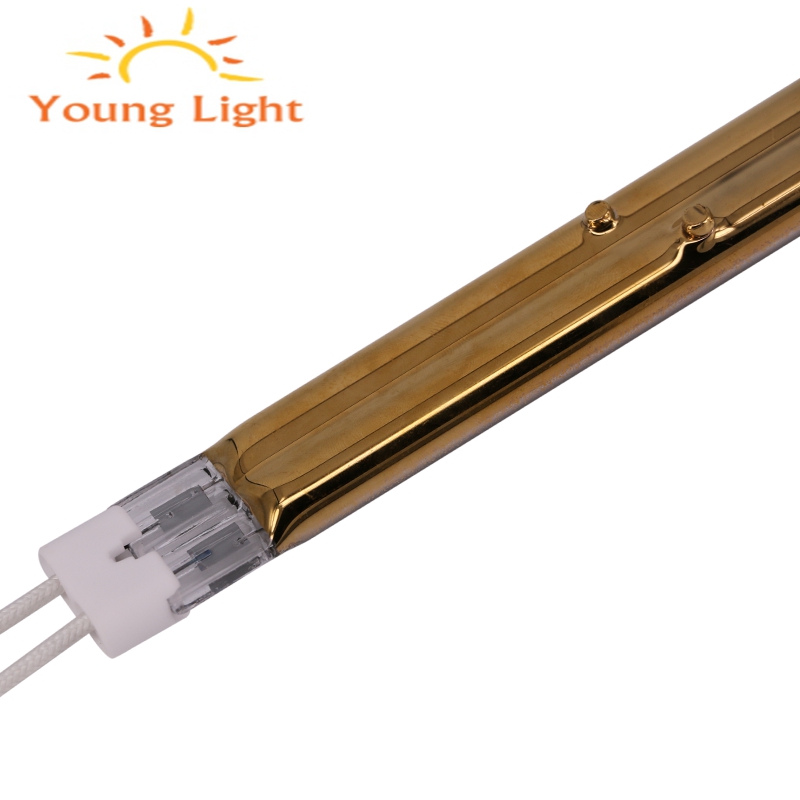

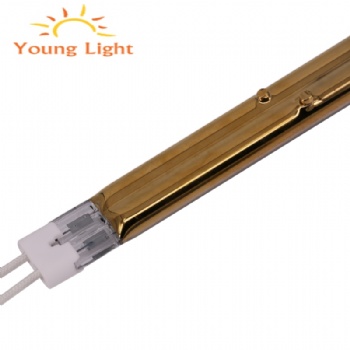

400V 5400W Infrared Radiation Lamp for SM102-SW-C C7.170.0301/01

Infrared Radiator tubes(or IR Tubes)are used in DryStar Units of Heidelberg Speedmaster SM52,SM/CD74,SM/CD102 adn XL105 machines.In order to ensure maximum longevity and durability,we recommend the replacement of IR tubes every 5,000hours.

Quality defines the result.

IR Tubes use a unique gold alloy that focuses the IR light onto the paper and prevents overheating in the delivery.
IR Tubes meet the highest quality standards,which means they are without any bubbles or brush marks in the glass to avoid the risk machine vibration fractures. All cables are triple-C rated to prevent dryer shutdown due to arcing caused by insulation breakdown.
Additionally,our IR tubes use tantalum disks to reduce the reaction of impurities over the lamp life.
The result is a longer lasting lamp with fewer black deposits commonly seen in competitive products.



Guarantee

The best for your equipment is IR tubes guarantee and optimal and efficient production.
Our IR Parts enable optimal and efficient production.Our parts meet the same precision and quality requirements as origianl Heidelberg/Manroland/Mitsubishi and other printing machine's IR tubes,with competitive prices.

400V 5400W Infrared Radiation Lamp for Sm102-Sw-C C7.170.0301/01
400V 5400W Infrared Radiation Lamp for Sm102-Sw-C C7.170.0301/01


Lamp Code

Volts(v)

Watts(w)

Total Length(mm)

YL Number

SM52-SW-A4153300740H200001G
HMO-SW-A4153300740H200002G
HMO-MW-B4151800740M200001G
SM72-SW-A4153500800H200003G
SM72-MW-B4151900800M200002G
SM102-SW-A41535001100H200004G
SM102-MV-B41525001100M200003G
SM74-SW-C4006950 900H200005G
SM74-FMW-B4804200820H200006G
MANGS-FMW-B4154200 820H200007G
SM102-SW-C4005400 1200H200008G
SM102-FMW-B4806000 1125H200009G
SM102-FMW-B-30004006000 1160H200010G
SM105XL-FMW-B4006200 1160H200011G

Each infrared lamp protected by EPE Cotton.Then total in a professional standard wooden or carton box.

Our cooperation courier company as following:

1.Transit in China: SF Express,transit time:1-2 days.

2.Transit to other country: DHL Express,transit time:3-7 working days.


1.Can you make custom size lamp?

We are good at making custom size lamp.Custom size,custom voltage and wattage,custom reflector and etc.

Just tell me what you need,or send us drawing.We will give you the lamp you want.



2.How long about the lamp life time?

Short wave infrared lamp life time: 5000 hours(Except high power density lamps),Medium wave infrared lamp life time: 20000 hours,UV lamp life time: 800-1000 hours.In order to ensure maximum longevity and durability,we recommend the replacement of IR tubes every 5,000hours.



3.How aobut the after Sales?

Every lamp will tested by our QC department before shipping.If the lamps have damage in transit or the life time less than we guaranteed.We will send you new lamps for replace.



4.How to order the lamps?

We accept  Paypal,Escrow,Western Union and T/T.



As direct factory of infrared heating lamps, we also can custom made heating lamps according to clients requirements. If you have your own design or specifications, please send us for quote.
