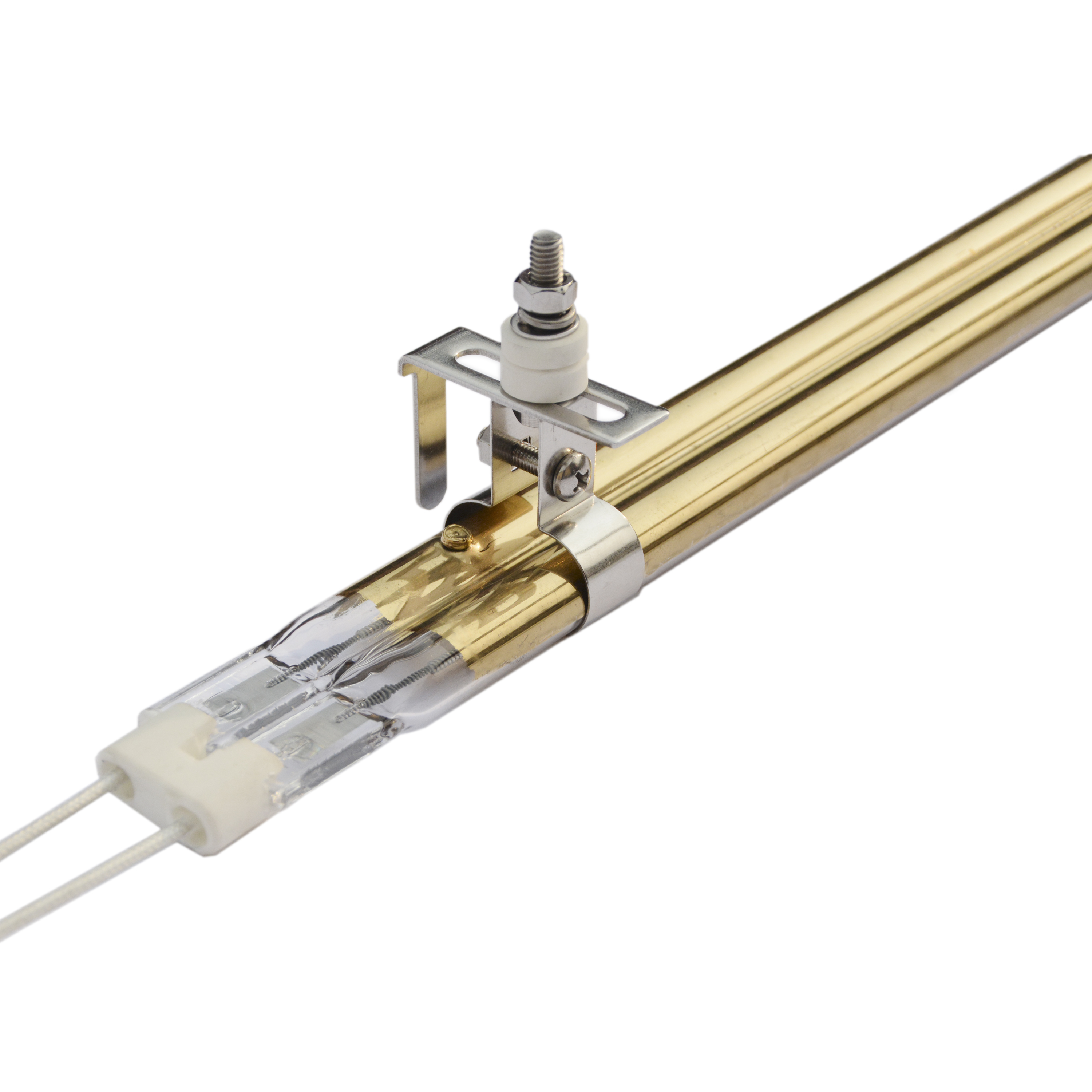

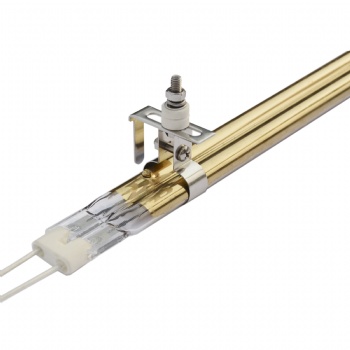

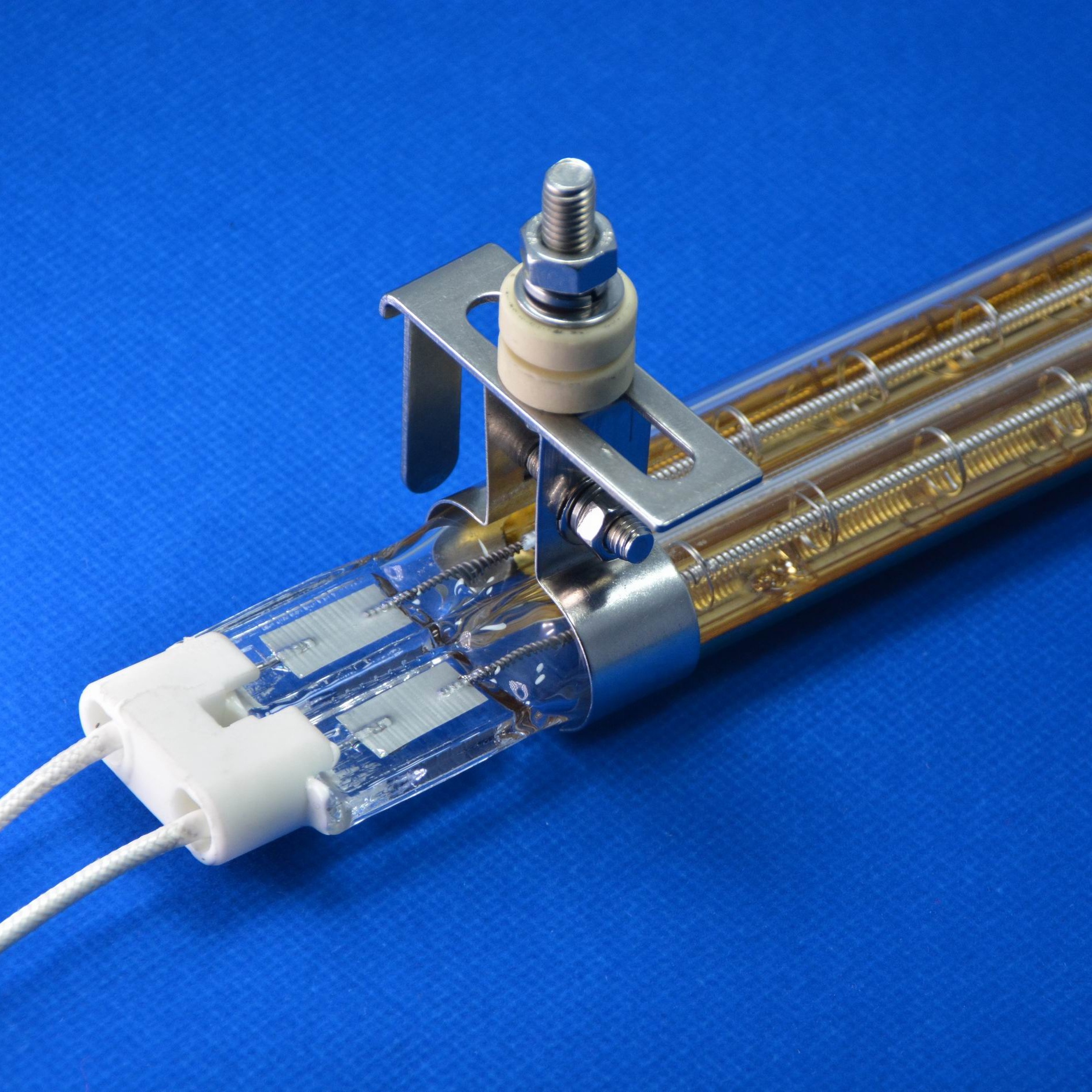

Twin Tube Infrared Heating Lamp for Heidelberg 91.170.1411
The 91.170.1411 is a high quality twin tube IR lamp. It features high output and long service life. Our lamps are used in numerous heating and drying applications. We manufacture them with gold and aluminum ceramic reflectors in 33x15mm and 23x11 cross sections. The 91.170.1411 is 1100 mm long, is operated on 415V and delivers 2500W of power. The factory warranty is 5000 hours.
Lamp Express continues to manufacture hard to find twin tubes for older presses and driers. No other company has the capability to source or manufacture these lamps like Lamp Express.
| Description | Value | Unit |
|---|---|---|
| Product Type | BLUETEC Replacement Lamp | |
| Configuration | Type: B one sided connection both channels heated | |
| Wave Length | Mediumwave | |
| Filament Type | Tungsten large coil | |
| Operating Position | Horizontal | |
| End Cap | Ceramic | |
| Terminal | Splice | |
| Cross Section | 33 x 15 | mm |
| Voltage | 415 | V |
| Wattage | 2500 | W |
| Amps | 6 | A |
| Length | 1100 | mm |
| Heated Ch 1 | 1020 | mm |
| Heated Ch 2 | 1020 | mm |
| Reflector | Gold | |
| Reflector Position | 180° | deg |
| Wire, left | 500 | mm |
| Lifetime | 5000 | h |
| Minimum Order Quantity | 1 | lamp |
| Notes | SM102-MW-B | |
| Product Type | SM102-MW-B. Heidelberg Speedmaster 102 (till mid 1997) Heidelberg Speedmaster CD 102 (till mid 1997) MAN Roland 704 | |
1. Infrared Heat Lamp Advantages:
Quick heating: 1~2 seconds fast response time.
Special reflectors: Gold reflector (90% reflective rate), White ceramic reflector (70% reflective rate).
Matched IR radiation wavelength: Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
Higher density power output: The highest surface power output of short wave lamp is 200KW/M2, Fast response medium wave lamp is 130KW/M2, Medium wave lamp is 60KW/M2.
Long working life: We can promise the working life of short wave and fast response medium wave lamp 5000hrs and medium wave lamp 8000hrs.
2. TwinTube Infrared Heat Lamp Specification:
| Twin Tube Infrared Heat Lamp | ||||||||
| Total Length(mm) | Heated Length(mm) | Voltage(V) | Wattage(W) | Cross Section(mm) | Reflector | Connection Side | Burning Position | TYPE |
| 125 | 60 | 115/230 | 600 | 23X11 | GOLD | VERTICAL | ONE-SIDE | B |
| 145 | 80 | 115/230 | 600 | 23X11 | GOLD | VERTICAL | ONE-SIDE | B |
| 145 | 80 | 115/230 | 1000 | 23X11 | GOLD | VERTICAL | ONE-SIDE | B |
| 200 | 130 | 230 | 1200 | 23X11 | WHITE | HORIZONTAL | ONE-SIDE | B |
| 250 | 180 | 240 | 1000 | 23X11 | GOLD | HORIZONTAL | ONE-SIDE | B |
| 350 | 270 | 240 | 1500 | 33X15 | GOLD | HORIZONTAL | ONE-SIDE | B |
| 400 | 320 | 230 | 2000 | 23X11 | GOLD | HORIZONTAL | TWO-SIDE | C |
| 450 | 380 | 400 | 2200 | 23X11 | NO | VERTICAL | TWO-SIDE | C |
| 480 | 410 | 230 | 2000 | 33X15 | GOLD | HORIZONTAL | ONE-SIDE | B |
| 500 | 420 | 400 | 3000 | 23X11 | WHITE | HORIZONTAL | TWO-SIDE | C |
| 600 | 535 | 230 | 3000 | 23X11 | GOLD | HORIZONTAL | ONE-SIDE | B |
| 630 | 560 | 380 | 3600 | 23X11 | GOLD | HORIZONTAL | TWO-SIDE | C |
| 660 | 580 | 400 | 4400 | 23X11 | NO | HORIZONTAL | ONE-SIDE | B |
| 700 | 630 | 220 | 3000 | 23X11 | GOLD | HORIZONTAL | TWO-SIDE | C |
| 735 | 630 | 400 | 4600 | 33X15 | GOLD | VERTICAL | TWO-SIDE | C |
| 800 | 700 | 230 | 4000 | 23X11 | GOLD | HORIZONTAL | TWO-SIDE | C |
| 900 | 800 | 400 | 6950 | 23X11 | GOLD | HORIZONTAL | TWO-SIDE | L |
| 1100 | 1000 | 400 | 3500 | 23X11 | GOLD | HORIZONTAL | ONE-SIDE | A |
| 1125 | 1020 | 400 | 6000 | 23X11 | GOLD | HORIZONTAL | ONE-SIDE | B |
| 1160 | 1080 | 400 | 6200 | 33X15 | GOLD | HORIZONTAL | ONE-SIDE | B |
| 1200 | 1100 | 240 | 5400 | 23X11 | GOLD | HORIZONTAL | ONE-SIDE | G |
| 1250 | 1150 | 400 | 3500 | 23X11 | GOLD | HORIZONTAL | TWO-SIDE | D |
| 1450 | 1350 | 400 | 8000 | 23X11 | GOLD | HORIZONTAL | TWO-SIDE | C |
| 1700 | 1600 | 480 | 9000 | 23X11 | GOLD | HORIZONTAL | TWO-SIDE | C |
| 2200 | 2100 | 480 | 12800 | 33X15 | WHITE | HORIZONTAL | TWO-SIDE | C |
| 3100 | 3000 | 480 | 13000 | 33X15 | GOLD | HORIZONTAL | TWO-SIDE | C |
Alternative Models
| HERAEUS | ||||
| Part no. | Volts | Watts | OAL | Type |
| 09751720 | 400 | 3000 | 1100 | A |
| 09751713 | 115 | 600 | 145 | B |
| 09751751 | 230 | 1500 | 300 | B |
| 09751741 | 230 | 1200 | 405 | B |
| 09751740 | 400 | 3000 | 600 | B |
| 09751340 | 400 | 3000 | 600 | B |
| 09751761 | 230 | 3000 | 650 | C |
| 09751765 | 230 | 4200 | 850 | C |
| 09751760 | 400 | 6000 | 1150 | C |
| 09751731 | 400 | 7000 | 1450 | C |
| 09751780 | 400 | 6000 | 1450 | D |
| 09751783 | 400 | 5000 | 1850 | D |
| 09752439 | 230 | 500 | 400 | B |
| 09755167 | 230 | 1000 | 900 | B |
| 09755054 | 230 | 2000 | 900 | B |
| 09755255 | 230 | 2500 | 1100 | B |
| 09753187 | 230 | 3250 | 1420 | B |
| 09754585 | 230 | 3750 | 1600 | B |
| 09754863 | 400 | 4100 | 1800 | B |
| 09754783 | 400 | 4500 | 1920 | B |
| 09756083 | 400 | 5750 | 2400 | B |
| 09753874 | 230 | 6250 | 2600 | B |
| 09753923 | 400 | 2500 | 1300 | C |
| 09752912 | 400 | 4000 | 1700 | B |
| 09754619 | 400 | 5000 | 2120 | B |
| 09753874 | 400 | 6250 | 2600 | B |
| 09751473 | 400 | 4800 | 1150 | B |
| 09751471 | 400 | 4000 | 1150 | B |
| 09751474 | 400 | 9500 | 2250 | C |
| 09751472 | 400 | 4800 | 2715 | A |
| 09751475 | 400 | 9600 | 2750 | C |
Heidelberg | |||||
Machine | Alt part no. | Voltage | Wattage | TOL | Type |
Speedmaster 74 | M6.170.0301/01 | 400 | 6950 | 900 | L |
Speedmaster 74 | SM74-FMW-B | 480 | 4200 | 900 | B |
Speedmaster 52 | G4.170.0101 | 415 | 3300 | 740 | B |
M Offset/ MO | 53.170.1311 | 415 | 3300 | 740 | B |
Speedmaster 102 | 91.170.1311 | 415 | 3500 | 1100 | A |
Speedmaster 102 | C7.170.0301/01 | 400 | 5400 | 1200 | H |
Speedmaster 102 | 91.170.1411 | 415 | 2500 | 1100 | B |
Speedmaster 102 | SM102-FMW-B | 480 | 6000 | 1125 | B |
Speedmaster 102 | F7.170.0771 | 400 | 6200 | 1160 | G |
Speedmaster 72 | 83.170.1311 | 415 | 3500 | 800 | B |
Speedmaster 72 | 83.170.1411 | 415 | 1900 | 800 | B |
XL105 | F7.170.0771.01 | 400 | 6200 | 1160 | G |
We also have the ability to design and produce other kinds of infrared heating lamps according to your requests.
3. Infrared lamps for Industrial Applications
1.Infrared Heat Lamp For Heating
Especially use for patio, canopy, terrace, restaurant , bar, cafe, garden, outdoor sport, stadiums, churches, workshop, factories, home, farm,greenhouse.
2. Infrared Heating Lamp For PET bottle blowing equipment
Reflector lamps focus infrared heat forward in the direction where it is required, reducing the loss of heat to the rear and improving efficiency. A reflective coating is applied to the surface of the lamp, usually covering 180° of the quartz tube. Infrared heat is emitted forward through the quartz tube, or is reflected off the back of the tube to then pass outfrom the front. Infrared heat lamps, with a reflector coating or clear heat lamp be used in various machines.
*Short wave clear infrared heat lamp
*Short wave white infrared heat lamp
*Short wave gold infrared heat lamp
3. Infrared Heating Lamp for Printing equipment
4. Infrared Heating Lamp for Paint Drying
*Short wave white heat lamp
*Short wave gold heat lamp
*Short-medium wave ruby heat lamp
*Short-medium wave ruby jacketed heat lamp
5. Infrared Heating Lamp for Drying Systems
6. Infrared Heating Lamp for Industrial Processing
4. FAQ
1.Are you factory or trading company?
We are professional factory of infrared heating lamps and quartz glass products since 1997. We have more than 80 experienced workers.
2.Can I have samples? Is it free?
Yes, we are happy to offer samples for you to check and test the quality. Samples are free if with stocks; you just need to bear the shipping cost. For samples without stocks, we will charge for the samples accordingly.
4.How long can I get the quotation? And samples?
Usually prices will be quoted within 24 hours after your enquiry. As for samples, it will take about 5-7 days. If it's special customized heating lamp, the time needed for samples could be longer.
5.What is your term of delivery?
We accept FOB, CIF, EXW etc. Please choose the one which is the most convenient and cost effective for you.
6.What about the lead time for mass production?
It depends on the order quantity and the season you place the order. The lead time is generally about 10 to 15 days.
7.Do you offer guarantee for the products?
Yes, it must be. We guarantee 2 years for heaters and 5000-8000 hours for heating lamps. If it's customized heating lamp or heating unit, we will confirm with you the guarantee period in formal quotation together with data sheet.
Our Infrared heater lamps meet the standards of CE & ROHS, we have strict quality control to make sure each IR lamp is perfect!
Donghai Young Light Optical Technology Co., Ltd is a professional manufacturer specialized in producing infrared heating lamps over 15 years. All of our infrared heating lamps can meet the testing standard of CE, RoHS. Custom made is available in our factory, same specification as HERAEUS, DR. FISCHER, GE, PHILIPS etc.
We also provide OEM/ODM service of different designs IR heating lamps, and ensure the good quality with on time delivery. Our heating lamps are exported to more than 50 countries include Germany, UK, USA, Mexico, Brazil, Egypt, Turkey, South Korea and other Asian countries. We manufacture singe tube IR heating lamps and twin tube IR heating lamps and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.
If you want to order or have any questions, please provide the following technical parameters or tell us your heating requests, we will reply you within 24 hours.
Total length LT=?
Heated length LH=?
Voltage=?
Wattage=?
Cross section= 23×11mm or 33×15mm
Reflector= Gold or White ceramic
Burning position= Horizontal or Vertical
Lamp type or original photo
