Special Shape Infrared Heat Lamp

U Shaped Infrared Heating Lamp for Hair Dryer

Voltage: 100V to 235V
Watt: 300w to 2000w
Custom made is available, pls send us your specification
INQUIRY

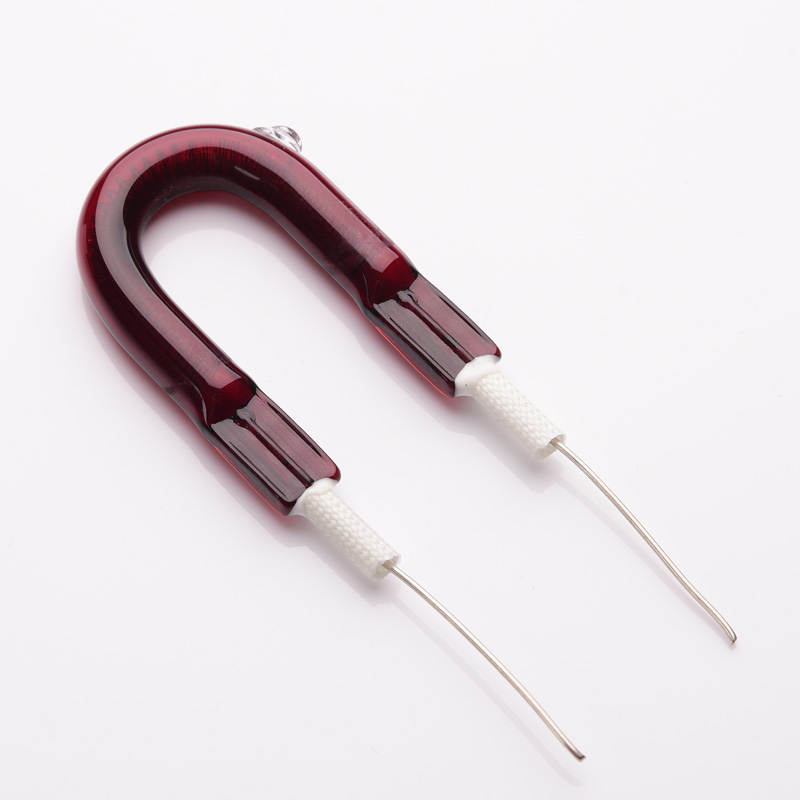

U Shape Infrared IR heater lamp 1000W

U Shape Short Wave Infrared Heat Lamp Advantages:

Long serving life: usually 5000 hours.

Fast Reaction Time: About 1-2s to achieve full power output.

High thermal effect: Based on wavelength of 0.8-1.4um, get high thermal energy to 62.5%.

Energy Saving: Gold and Ceramic coating maximize reflect Infrared radiation up to 90%, more energy saving, smaller footprint and better heating results.

Green, safe and Environment Protecting: nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.

^{RODUCT APPLICATION}
Infrared heating is a kind of radiation heating. It spreads by a kind of infrared radiation (light)-- infrared light from material in the form of molecular (atomic) resonance absorption, so as to achieve the purpose of heating. It can be applied in many fields such as the heating process of industry coating, plastic forming, automotive industry, glass making, spinning, solar PV, food baking, drying of printing inks, quick drying of primer and paint on furniture, printed circuit, and so forth.

Production Description	U Shape Infrared IR heater lamp 1000W
Tube Diameter(mm)	10	10.5	11	12	13	13.5	15	18
Overall Length(mm)	80-1700	80-1700	80-1700	80-1700	80-1700	80-2100	80-2500	80-3000
Tube Thickness(mm)	1.3	1.3	1.3	1.3-1.5	1.5	1.5-1.75	1.8	2.0
Heated Length(mm)	30-1650	30-1650	30-1650	30-1650	30-1650	30-2050	30-2450	30-2950
Max Power(w/cm)	100	100	100	100	100	100	120	150
Connection Type	lead wire at two sides						tow or one side conenction
Tube Coating	transparent, gold coating, white coating
Voltage	80-750v
Cable Type	1.silicone rubber cable 2.teflon lead wire 3.naked nickel wire
Installing Position	Horizontal/Vertical
All you wanted can be found here - customized service
